Description

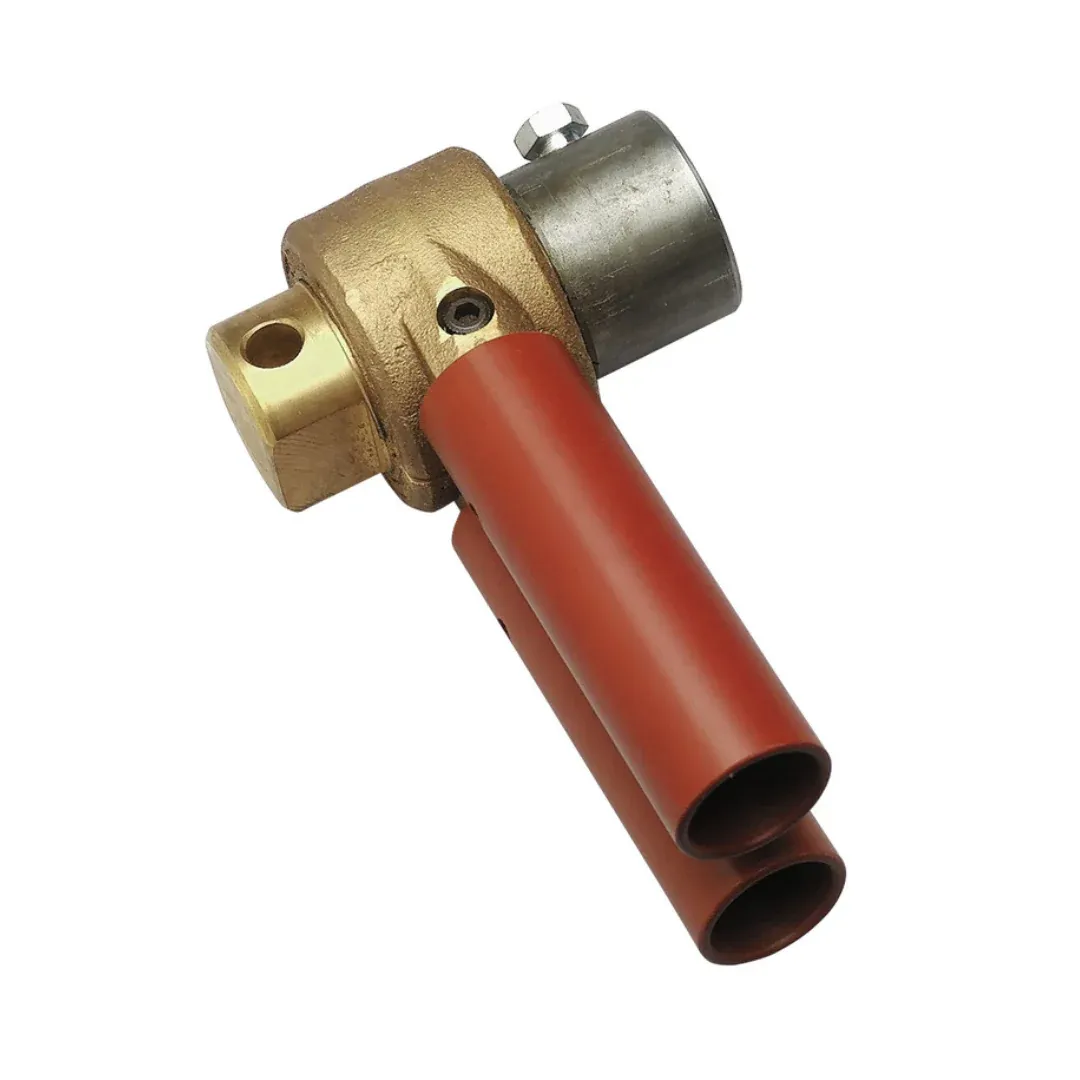

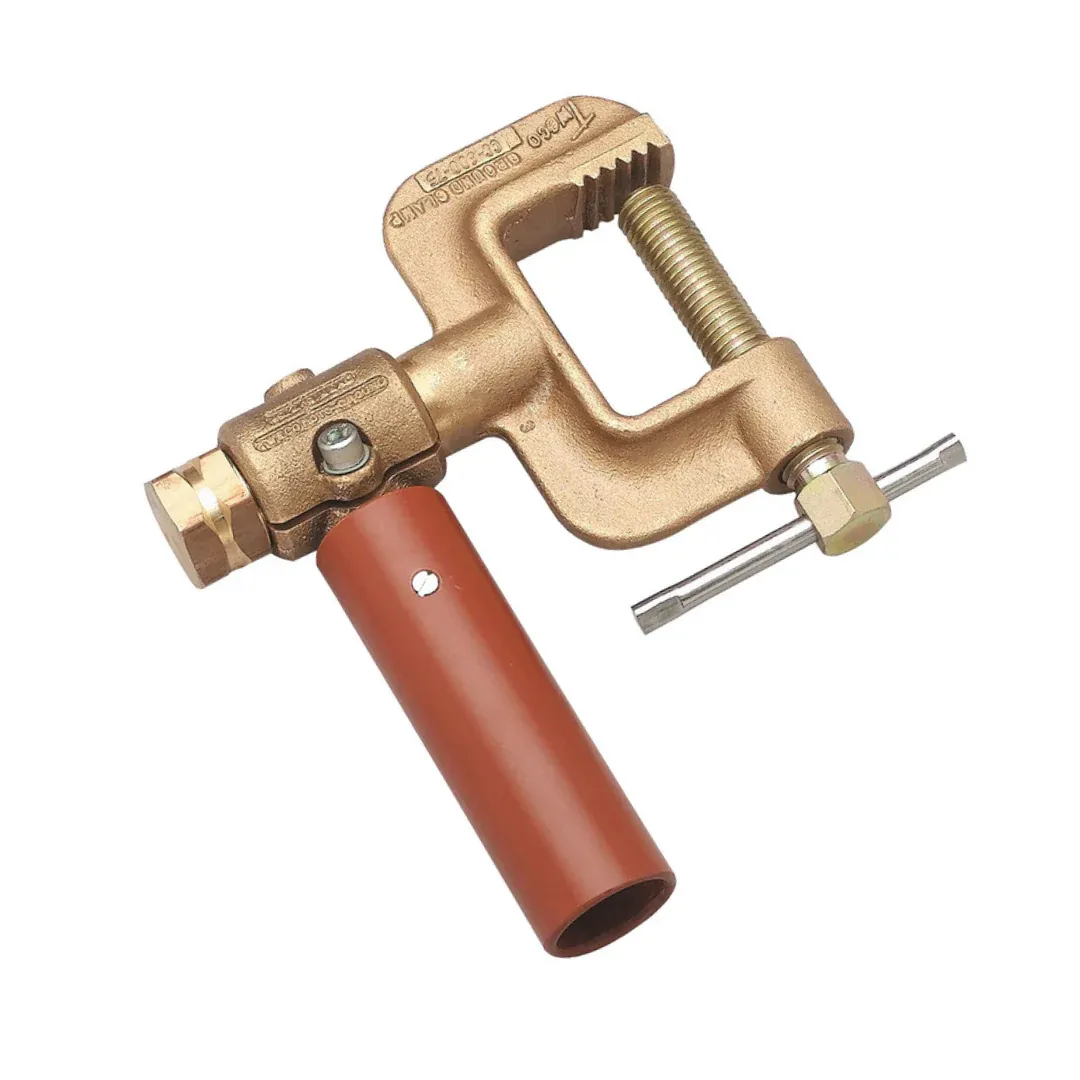

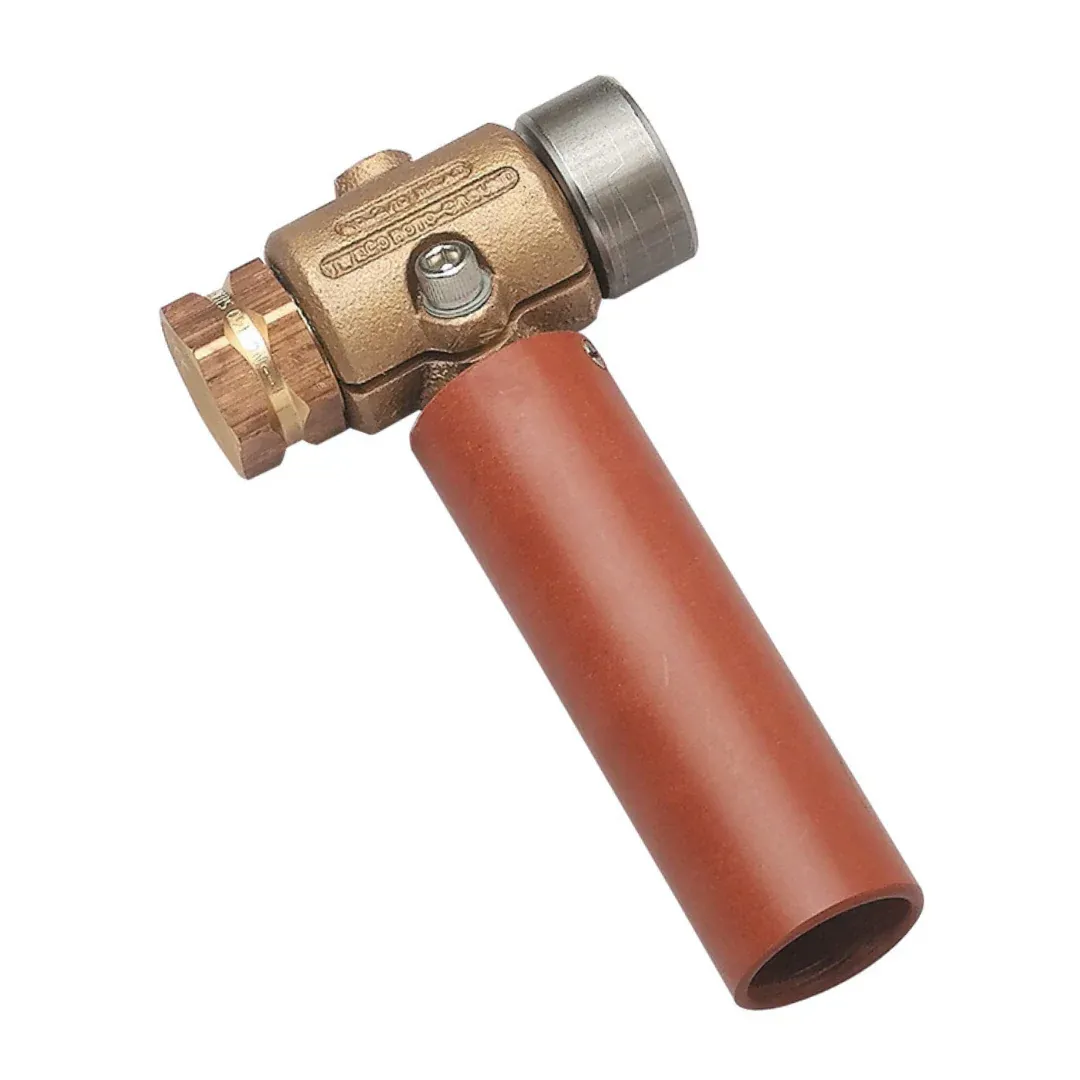

Tweco Roto-Ground Heavy Duty Rotary Ground Clamps
Tweco Roto-Ground is a highly efficient device for grounding weldments while being rotated on turning rolls or positioners. The 2” shaft shoulders up to a steel nut which the user welds to rotating work or fixturing.
Tweco Roto-Grounds have no brushes, springs or mercury. A simple tension adjusting bolt provides maximum efficiency.
| Amperage | Cable Size | No. of Heads | Shaft Stud | Length | Model Number | Part Number |
| 400A | 1 – 4/0 | 1 | 3/4″ NC | N/A | GCRG-140 | 9210-1314 |
| 400A | 1 – 4/0 | 1 | 3/4″ NC | 8″ (203 mm) | RG-140 | 9250-1114 |
| 600A | 2 – 3/0 | 1 | 1-1/8″ NC | 10-1/4″ (260 mm) | RG-230 | 9250-1123 |
| 800A | 2 – 4/0 | 1 | 1-1/8″ NC | 10-5/8″ (270 mm) | RG-240 | 9250-1124 |
| 1500A | 4 – 4/0 | 2 | 1-1/8″ NC | 10-5/8″ (270 mm) | RG-440 | 9250-1144 |
| 2000A | 6 – 4/0 | 3 | 1-1/8″ NC | 10-5/8″ (270 mm) | RG-640 | DISCONTINUED |
