Description

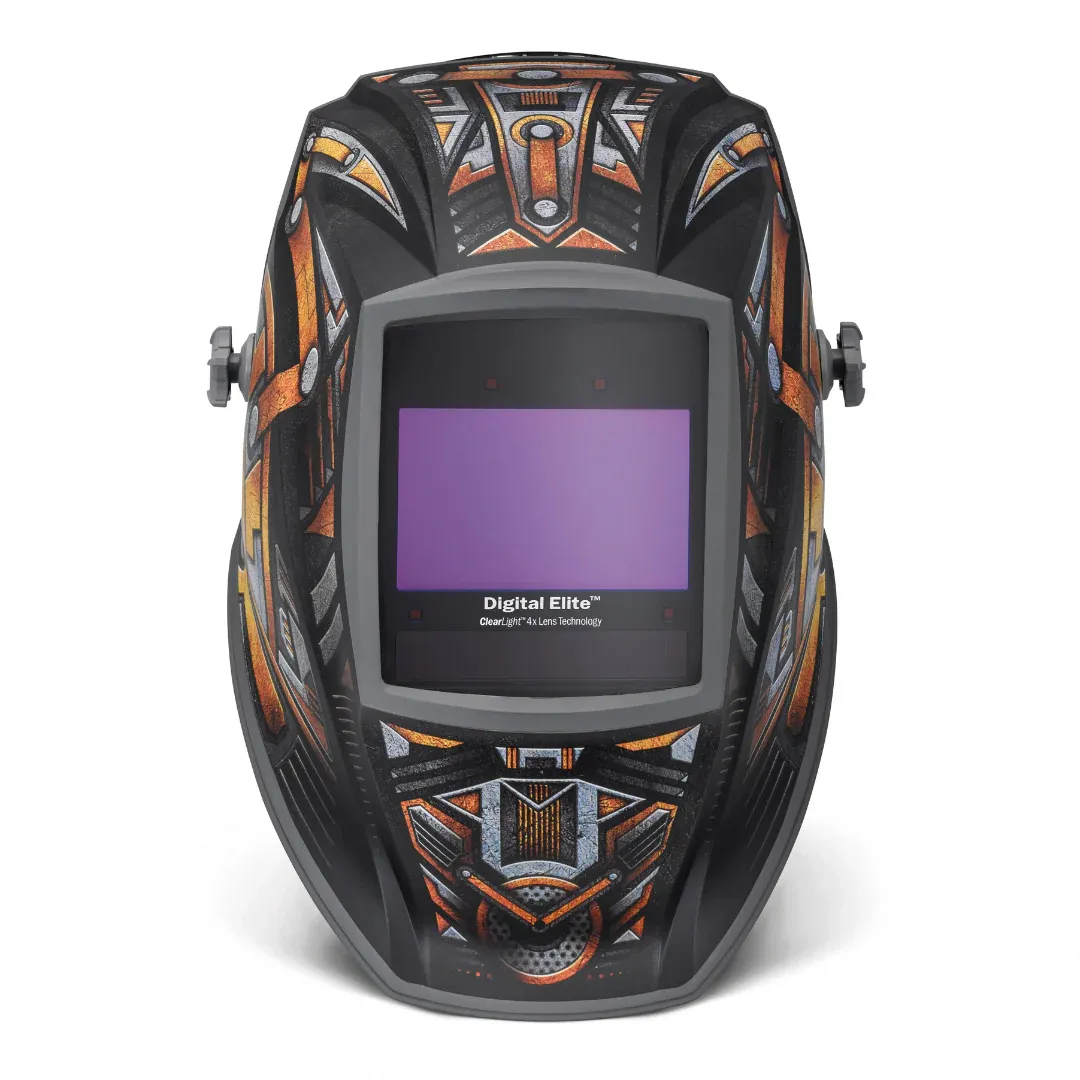

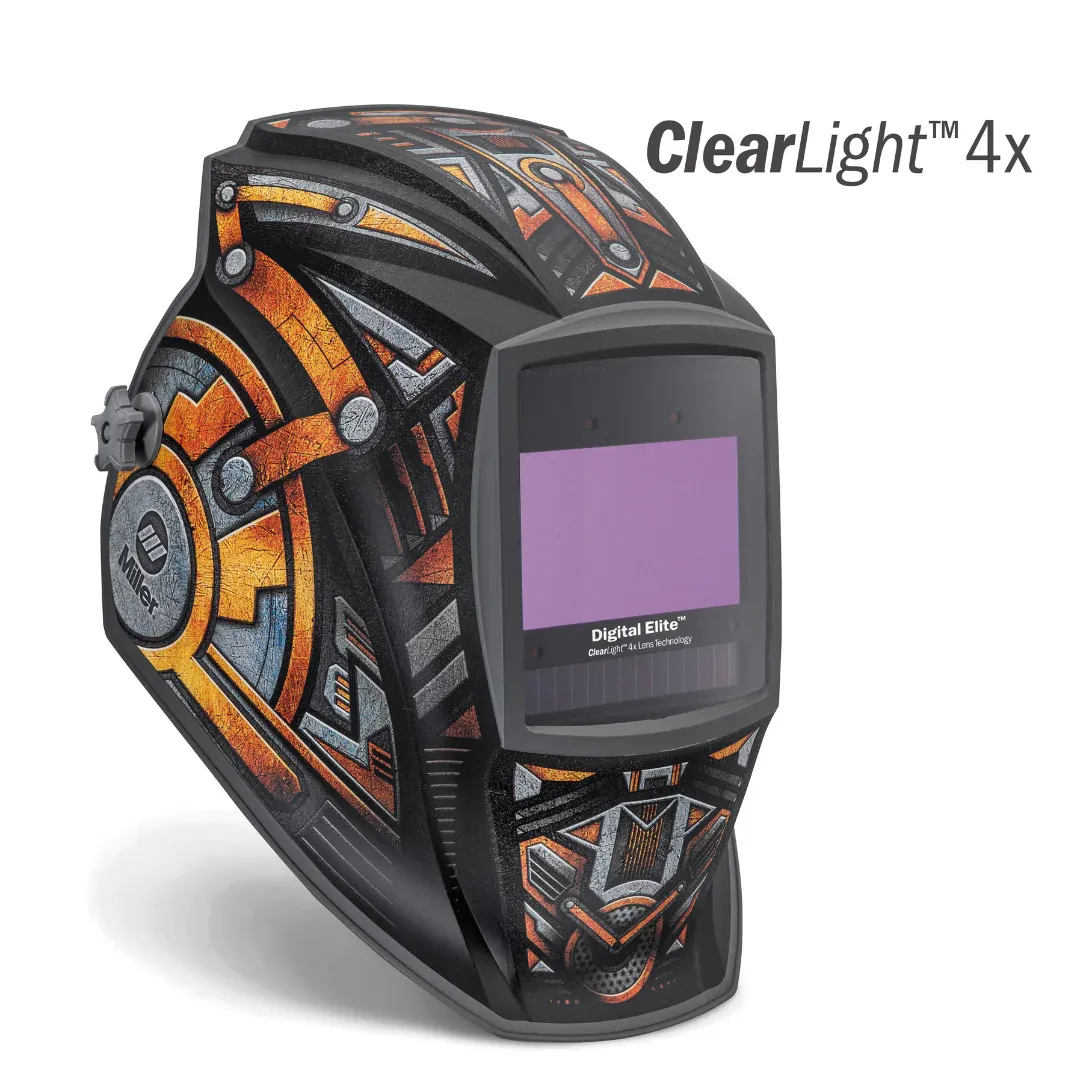

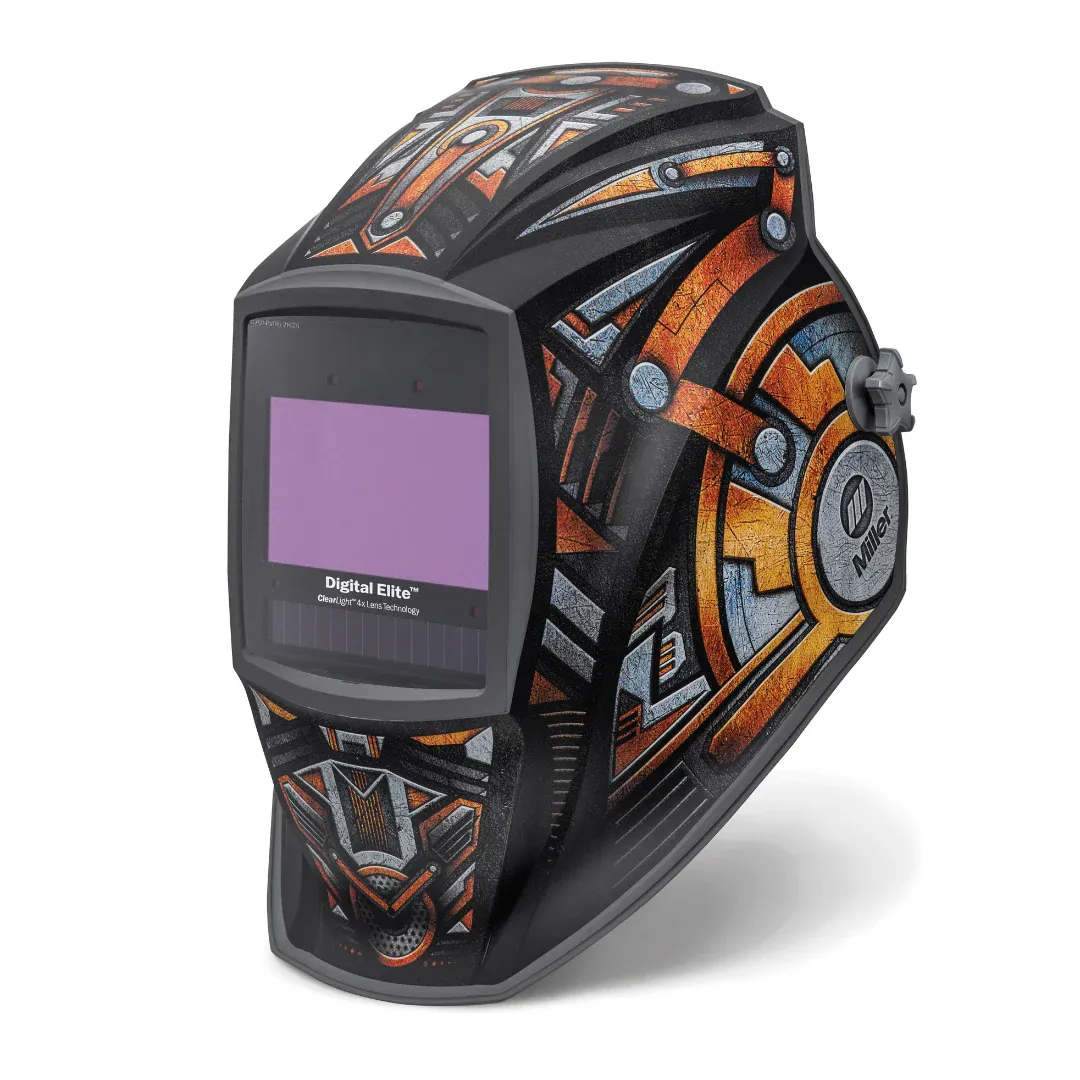

Miller Digital Elite, Gear Box Helmet
Clearlight 4x
This leading welding helmet provides high-performance versatility. Features ClearLight™ 4x Lens Technology and a large viewing area.
Part No. 296771
Features:
- ClearLight™ 4x Lens Technology: Offers up to four times better clarity compared to standard welding helmets, with 1/1/1/2 optical clarity.
- InfoTrack™ 2.0: Tracks and displays arc time and arc count to monitor welding performance.
- AutoSense™ button: Automatically adjusts helmet sensitivity to suit the welding environment, reducing manual setup.
- Four arc sensors and operating modes: Includes Weld, Cut, Grind, and X-Mode for versatile welding tasks.
- X-Mode™: Electromagnetically senses the weld to reduce sunlight interference and detect the arc even if sensors are blocked.
- Digital controls: Allows precise adjustment of lens settings for shade, delay, and sensitivity.
- Memory function: Stores two customized presets for quick switching between different settings.
- Half-shade settings: Provides finer control over lens adjustments for improved precision.
- Legacy headgear: Features a comfort cushion designed for enhanced stability and comfort during long hours of wear.
- Helmet lighting accessory kit: Optional kit includes two side-mounted lights for better visibility in low-light conditions.

| Product Name // Part Number | Digital Elite™, Clearlight 4x, Gear Box// 296771 |
| Light State | 2.5 |
| Sensors | 4 |
| Optical Clarity (EN 379) | 1/1/1/2 |
| TIG Rating | 5 amps and below |
| Switching Speed | 1/25,000 second |
| Weight | 17.5 oz. (495 g) |
| Battery | CR2450 Lithium |
| Certifications | ANSI Z87.1+, CSA |
| Viewing Area | 9.2 sq. in. (59.48 sq. cm) |
| Operating Modes and Shades | Weld (8 – 13), Cut (5 – 8), Grind (2.5), X-Mode™ (8 – 13) |
| Warranty | Four years for the auto-darkening lens |
What’s Included
-
Helmet bag
-
2 inside cover lenses
-
5 outside cover lenses
Digital Elite Series Data Sheet | Digital Elite Series Manual | Replacement Parts
