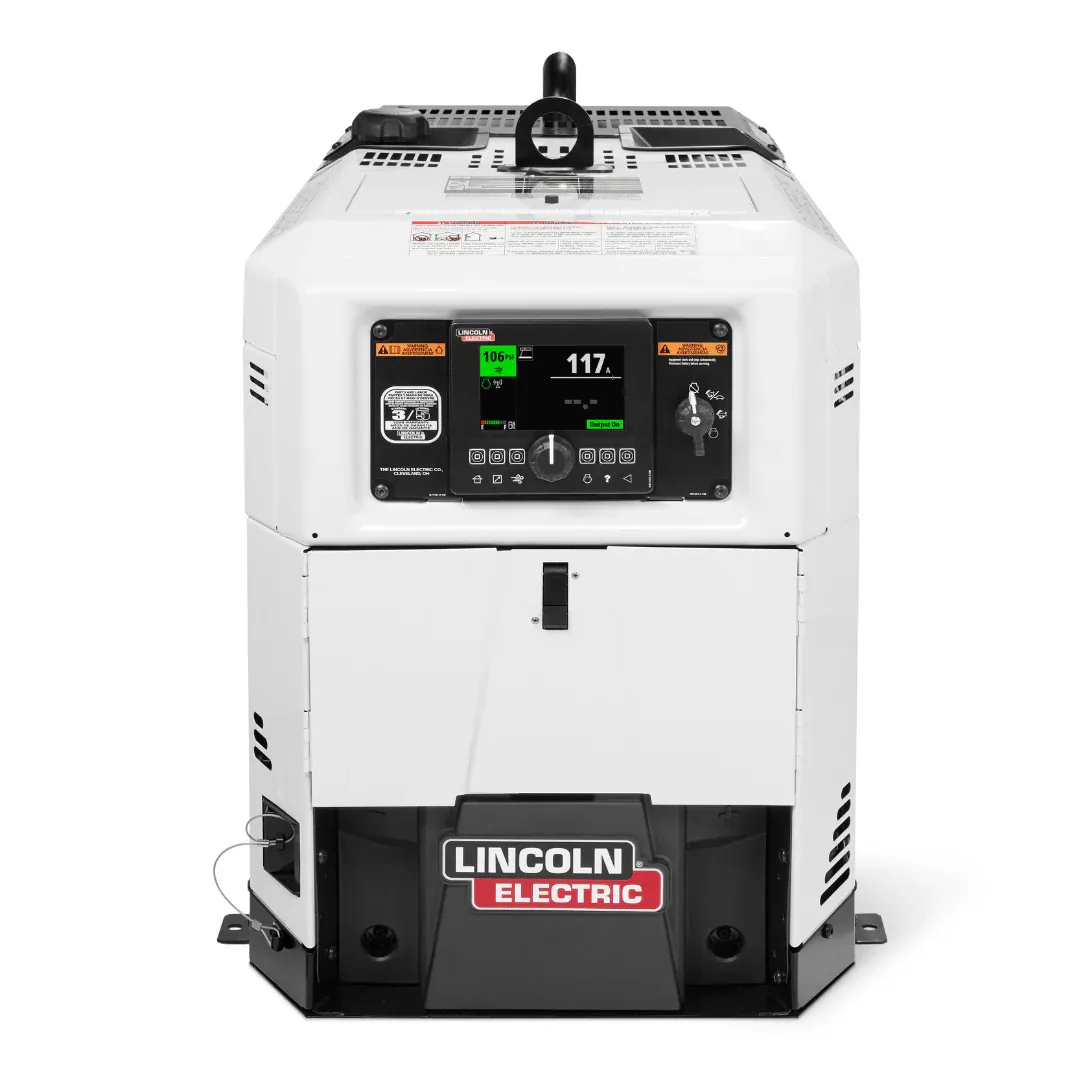

Lincoln Electric RANGER® AIR 260MPX Multi-Function Engine Drive
Versatility With Unparalleled Performance
The Ranger Air 260MPX multi-function engine drive was designed for the operator who faces the unexpected every day. A perfect fit for fleet and service trucks, the Ranger 260 MPX AIR builds on the compact and versatile Ranger MPX platform.
Air Compressor – The Vanair® rotary screw air compressor delivers instant 40CFM @150 PSI, generating up to 30% more air power compared to other machines in its class. Operators can power large tools – up to a 1-inch impact wrench, and inflate
tires faster to complete jobs in less time.
Generator – 9KW of clean continuous AC generator power accommodates a variety of tools and equipment, allows you to power tools while welding and with less than
5% total harmonic distortion (THD) you can operate sensitive electronics, like laptops.
Battery Jump Assist and Battery Charging – Capability to jump and charge 12V and 24V batteries on the jobsite. Get equipment started and keep productivity high with 260A for cold cranking assist.
Multi-Process Welding – Stick, TIG, MIG, Flux-Cored and direct connect spool gun
with a 260A/26V/100% duty cycle so the operator can tackle a variety of applications
Ranger AIR 260MPX Technical Specifications
| Product Name // Part number | RANGER® AIR 260MPX // K5238-1 |
| Duty Cycle: |
260 Amps, 26 Volts @ 100%
|
| Welding Output: |
260 Amp DC, MulitProcess, Chopper Technology
|
| Generator Output: |
11,500W Peak, 9,000W Continuous
60Hz AC Power Single Phase |
| Full-KVA Receptacle: |
39.5A @ 240V, 40A @ 120V ea. Branch Circuit
|
| 120V Receptacles: |
Four 120V Receptacles, 20A Total
|
| Kohler Engine: OHV Command ECH749 Gasoline |
26.5 HP @ 3600 RPM, 45 cu in (725 cc)
Electric Start, 12V Battery, 410 CCA, Rotary Start Switch Fuel: 11 Gals (41.6 liters) Oil: 0.5 Qts (1.8 liters) |
| Weight | 565 lb. (256 kg) |
