Description

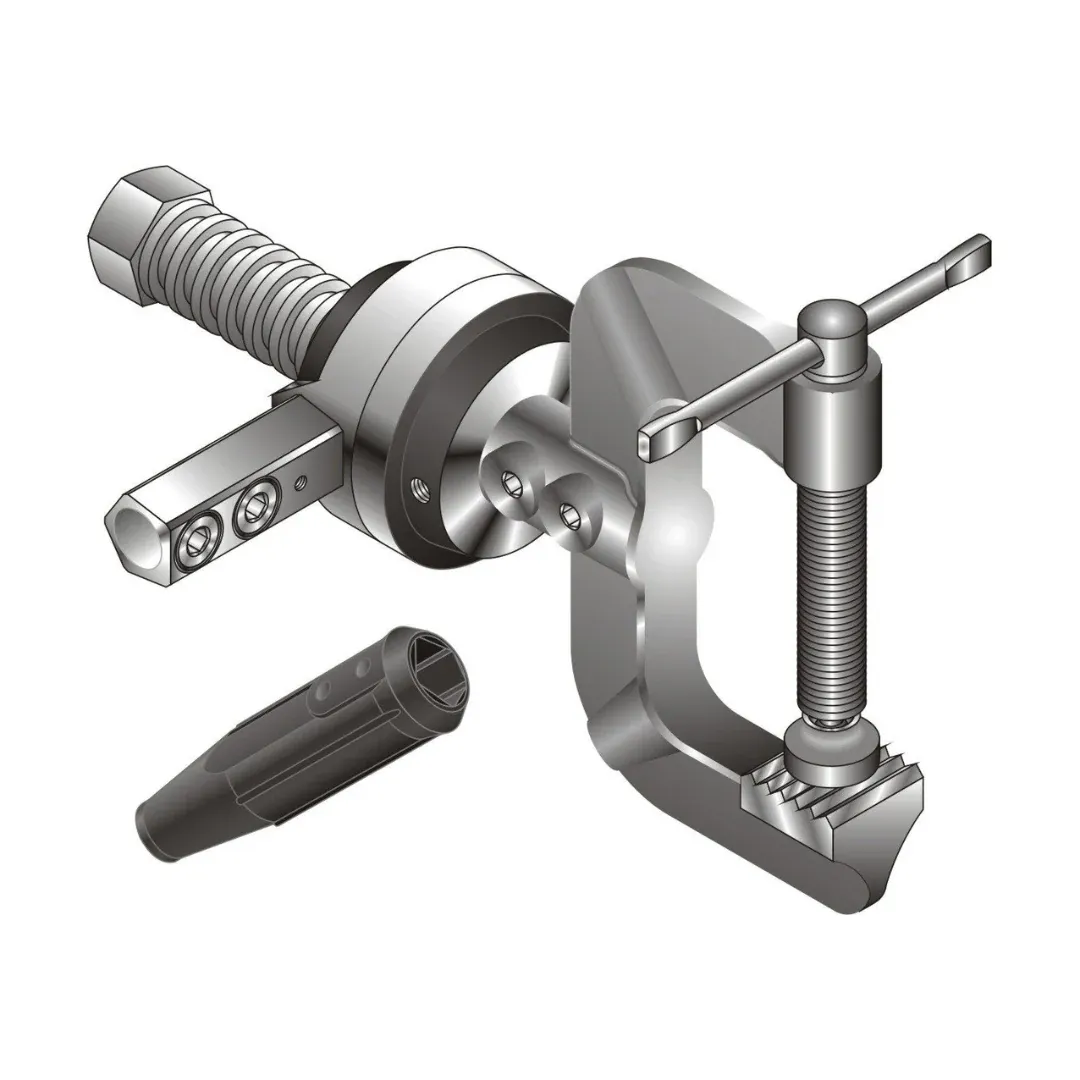

Lenco GC-500 AMP Rotary Ground Clamp

The two LENCO rotary devices shown here, the GC-500 and the MIG-600-C, are combinations of LENCO products to provide rotating grounds. Both use the Model “C” rotary clamp. Both are designed to make it easy to attach the rotating portion to the
work. The units come completely assembled, ready to attach to the work. They are field proven and do an excellent job.

Model GC-500

• 500 Amp Capacity
• 2 Oval Point Screws with cover for cable connection
• 3/0 – 4/0 Cable Capacity
• 3-3/8″ Jaw Opening
• 2-1/2″ Throat Depth
• 8 lbs.
• Lenco Part Number: 02120
