Description

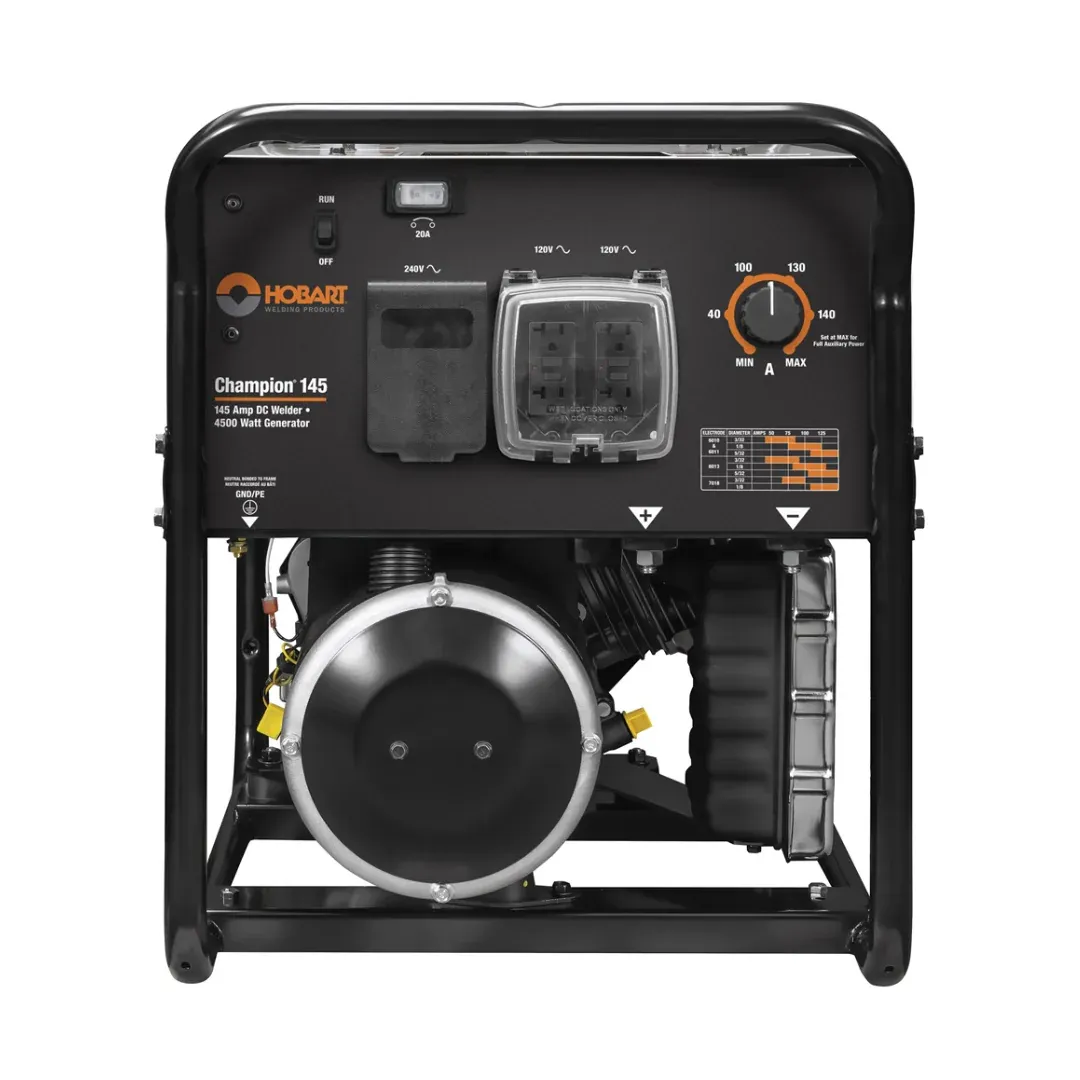

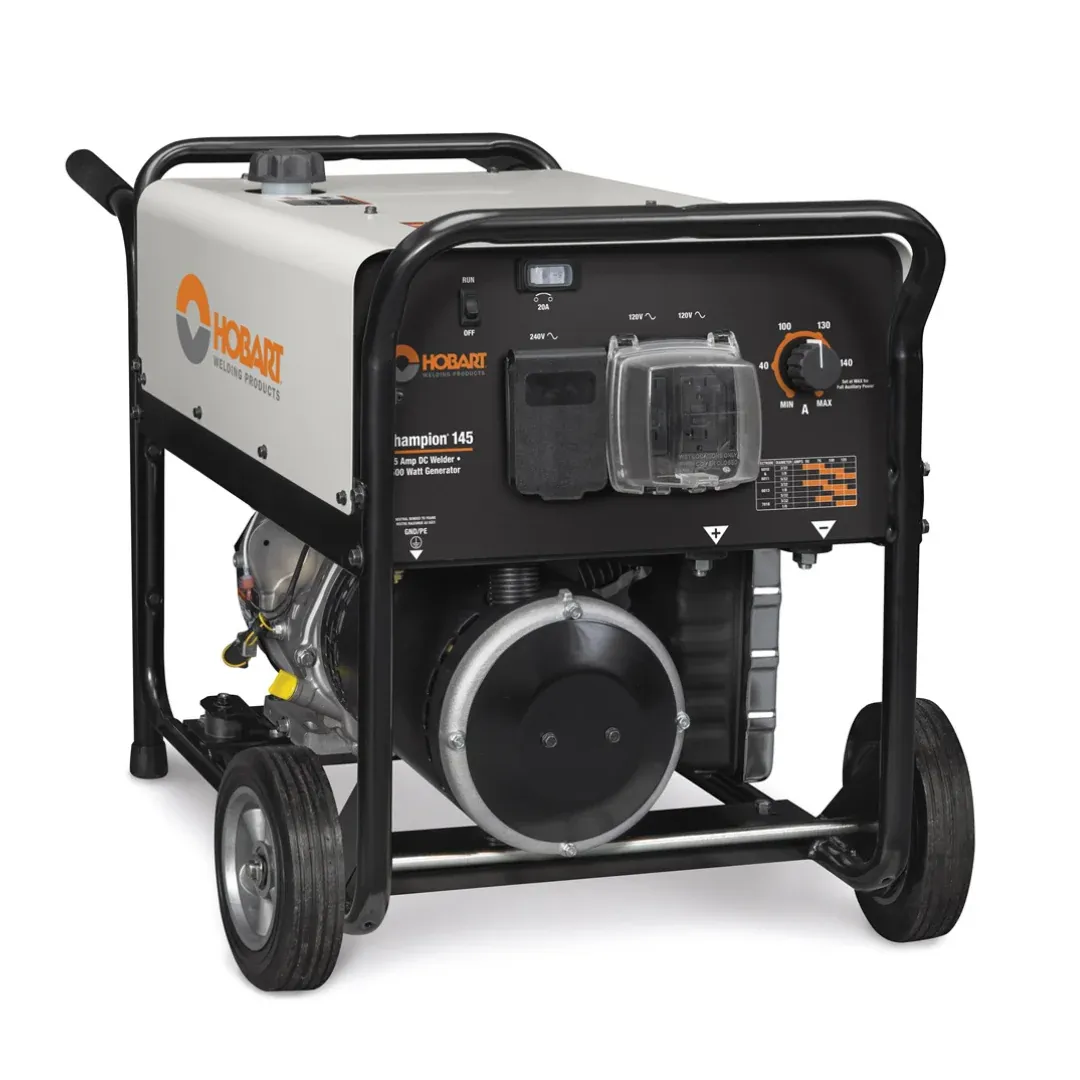

Hobart Champion® 145 Recoil Engine Driven Welder – 500563
Provides 145-amp stick welding with 4,500-watt auxiliary power.
Lightweight and compact, the Hobart Champion 145 engine-driven welder provides stick welding capability. It delivers up to 145 amps to weld with up to 5/32-inch electrodes, making it an ideal choice for maintenance and repair projects. This welder is a good source of auxiliary power, providing up to 4,500 starting watts for hand tools, grinders, work lights and battery chargers.
| Title | Champion® 145 |
|---|---|
| Industries | Maintenance/repair Farm/ranch Fabrication |
| Engine | Briggs & Stratton 1450 Intek™ Series |
| Ignition | Pull start |
| Fuel Type | Gasoline |
| Amperage | 40 A – 145 A |
| Rated Output | 130 A at 25 V, 30% duty cycle |
| Single Phase Generator Continuous Power | 4,000 W |
| Single Phase Generator Peak Power | 4,500 W |
| Current Type | DC/AC |
| Portability | Lift Eye (Sold Separately) Running Gear / Cart (Standard) |
| Weld Output | CC |
| Dimensions | H: 24.75 in. (629 mm) W: 20.625 in. (524 mm) D: 31.25 in. (794 mm) |
| Net Weight | 223 lbs |
Non Stock Item, Not Eligible for free shipping. – Please contact support@canadaweldingsupply for accurate lead time and freight cost
