Comparc S 512 P Suitcase Wire Feeder

Compatible with Lincoln Electric, Miller, Hobart and Comparc Engine Driven Welders.

The Comparc S512 P voltage sensing MIG wire feeder is a portable, compact and lightweight solution for field MIG and Flux Core welding where an engine driven welder is available.

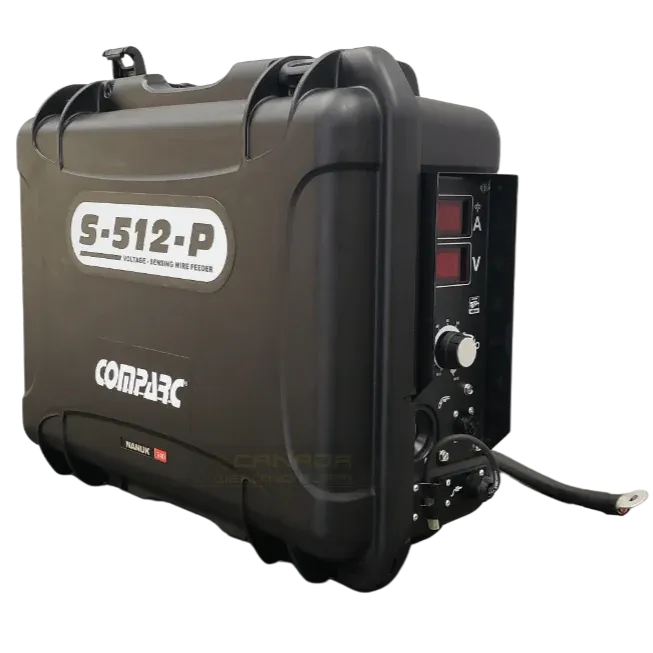

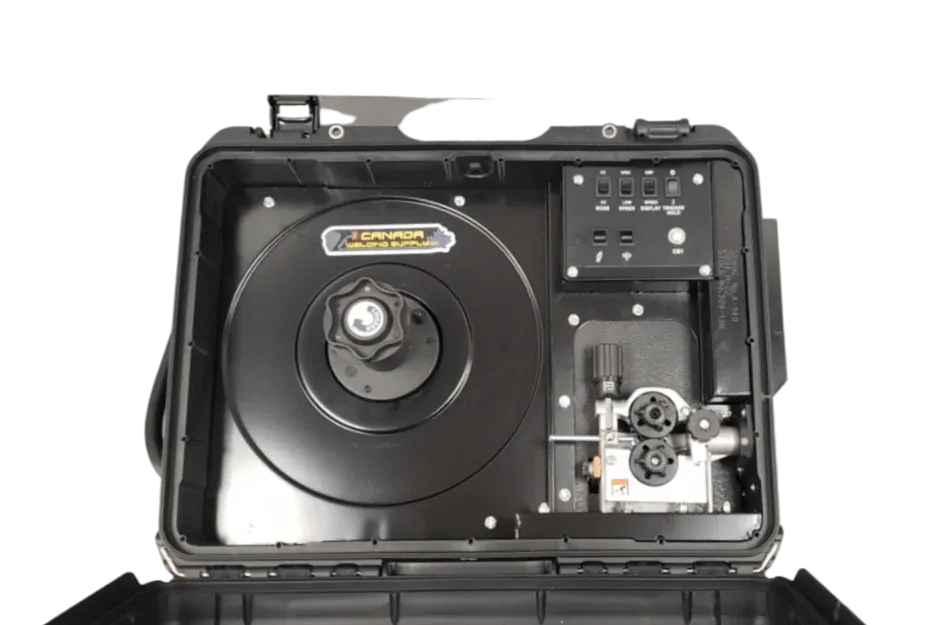

The S 512 P features a 2-Roll drive system utilizing popular Miller style rolls, making parts easy to find and providing reliable feeding of all wires up to 5/64″. The system is packed into a Nanuk brand hard case with dual latches to provide rugged resistance  to the elements.

Specifications

• Number of rollers: 2
• Arc Voltage range: 14 – 110 VDC
• Input Circuit Capacity: 400A @ 60% duty cycle
• Wire Speed: 60″ – 850″ per min
• Wire Diameter: .023″ – 5/64″ (0.6mm – 2.0mm)

Features

• Easy to carry and light weight
• Environmentally protected pc board
• Gas valve

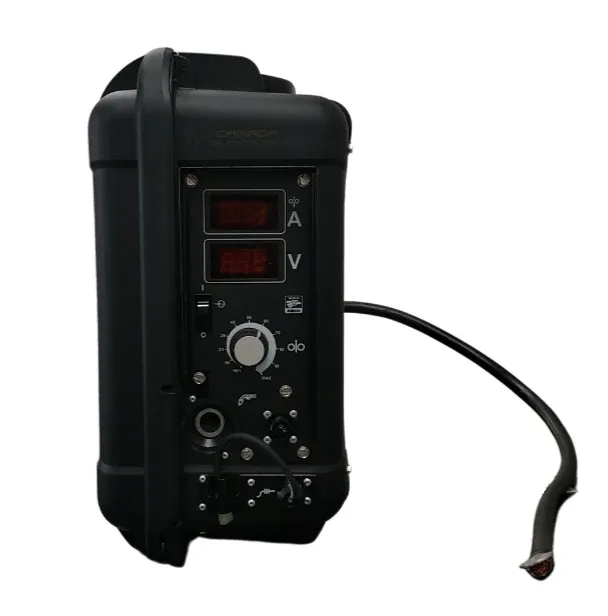

• Digital meter for voltage and current/ wire speed
• Accepts spools up to 12″ in diameter
• Contactor
• Includes drive roll set of 0.9 and 1.2mm (0.035″ – 0.045′)

What’s Included

• S 512 P Voltage Sensing Wire Feeder
• Voltage sense lead
• Inert gas hose
• 1 Set 035-045 V-Groove Drive Rolls
